How do I install my Range+?

Congratulations! You are now the proud owner of a Range+.

Need help installing and activating Range+? No problem! Here you will find everything explained step by step.

Before mounting

Indoor setup

Plug the adapter in an electricity socket. Connect the part of the cable with the green sticker to the PWR - LAN OUT port of the adapter. Connect the other side of the same cable to Range+.

Positioning Range+

Your Range+ should be mounted on the side of the home that is most receptive to a good signal. Download de install helper app via the Google Play Store or the Apple Store. Follow the app instructions to connect your phone to Range+. The model of the Range+ is MC7010. The app will ask for a password. You can find this password on the back of the Range+.

Take your phone and plugged in Range+ out through the window. Walk around your home with it to find the best signal strength using the app. Once the optimal position is defined, look for the closest surface to mount the Range+ to (pole or wall).


Mounting Range+

Optimally, mount Range+ on a round surface because you then have the ability to fine-tune its direction for the most optimal signal reception.

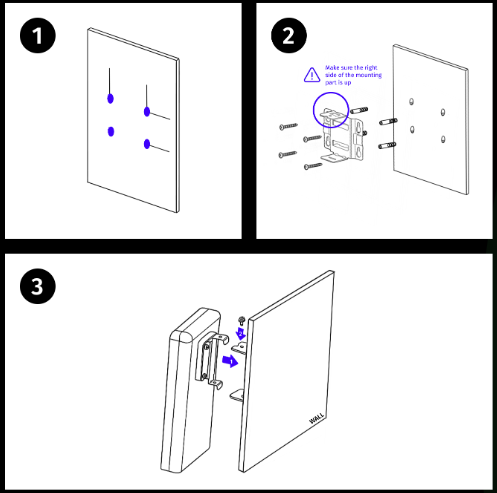

Mounting on a wall

Screenshot 2023-09-14 at 14.31.18.png

  1. Draw the outline of the holes on the wall with the above measurements. Drill the holes.
  2. Insert the dowels into the holes and attach the mounting part to the wall with the screws.
  3. Attach the mounting part of Range+ to the mounting part on the wall with the small screw.

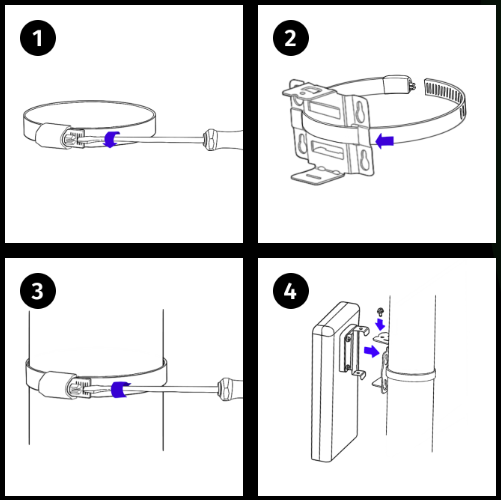

Mounting to a pole

Screenshot 2023-09-14 at 14.31.25.png

  1. Use a screwdriver to loosen the screw and then belt.

  2. Insert the strap through the U-shaped groove on the mounting piece.

  3. Attach the strap to the pole. Use a screwdriver to tighten the strap around the pole.

  4. Attach the Range+ mounting piece to the mounting piece on the pole using the small screw.


To improve signal reception, you can refine Range+'s positioning by re-measuring signal strength with the Install Helper app. This is only possible if you have mounted your device to a round surface.

You can run the cable from Range+ to the adapter inside in different ways. This can be done through the window or through a hole in the wall. You can hide the cable through a cable frame.

Power on & connect

Re-connect all cables from previous steps in case you disconnected them for easy mounting. Plug the remaining cable in the LAN2/WAN port of the modem and the other side in the LAN IN port of the adapter.

Add your TADAAM Range+ in My TADAAM

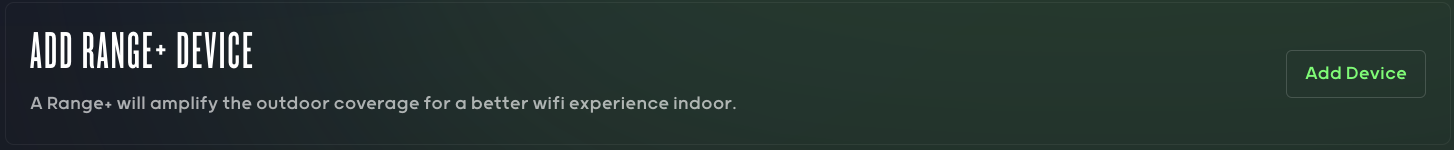

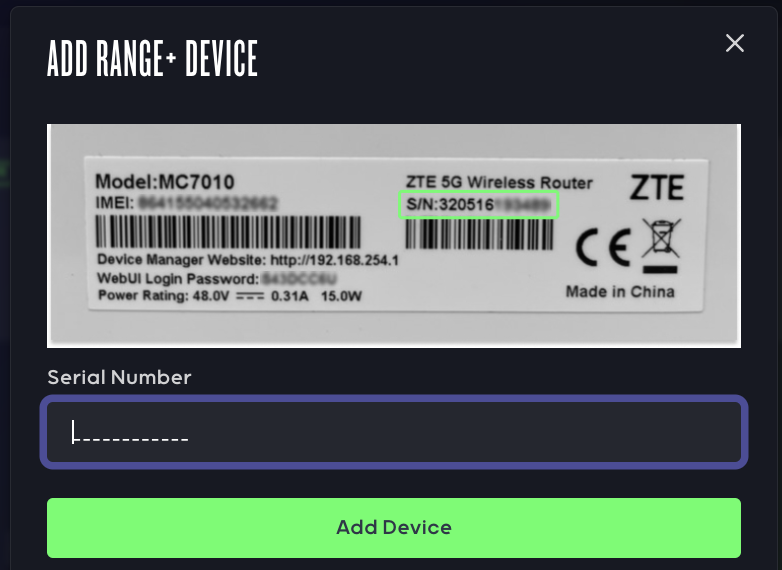

Go to My TADAAM and add your Range+ to your devices. Activate your Range+ by entering the serial number. For your information: You can also simply reactivate your indoor TADAAM modem at any time.

Screenshot 2024-02-26 at 14.34.28.png

Screenshot 2024-02-26 at 14.34.35.png
